When you imagine your dream home extension in Bognor Regis or Chichester, you likely picture the sleek bi-fold doors, the sun-drenched open-plan kitchen, or perhaps that quiet home office you’ve desperately needed. You probably don’t spend much time thinking about the concrete poured several metres below your garden.
However, as any experienced builder will tell you, the success of your project literally rests on what lies beneath. In West Sussex, our varied geology: ranging from the coastal sands of Bognor to the heavy, shifting clays found further inland: means that choosing the right foundation isn’t just a technicality; it’s the most critical decision of the entire build.
At Swanbourne Construction Ltd, we believe that understanding the "why" behind your build helps you feel more in control of your investment. Whether you are looking at extensions in Chichester or a wrap-around in Arundel, here is everything you need to know about foundation types for your home extension.
Why Foundations Are the Most Important Part of Your Quote
Have you ever wondered why two identical-looking extensions can have vastly different price tags? Often, the answer lies in the ground. Foundations serve three primary purposes: they support the weight of the new structure, they resist the natural movement of the soil, and they provide a level base for the rest of your home to rise from.
In the UK, and particularly in our corner of the South Coast, ground conditions can be unpredictable. Building Regulations are incredibly strict regarding foundations because if they fail, the structural integrity of your entire house is at risk.
1. Strip Foundations: The Traditional Choice
Strip foundations are perhaps the most common type of footings used for low-rise residential extensions in the UK. Imagine a continuous "ribbon" of concrete centered under your new walls. This concrete strip spreads the weight of the extension over a wider area of soil.
- How they work: A trench is dug, and a relatively thin layer of concrete (usually around 150mm to 225mm deep) is poured into the bottom. Once set, the bricklayers begin building the walls from this concrete base up to ground level.
- Best for: Sites with firm, load-bearing soil and where there are no nearby trees that could cause soil shrinkage or expansion.
- The Benefit: They are often the most cost-effective option because they require less concrete than other methods. However, they are more labour-intensive for the bricklayers, who have to work inside the trenches to bring the walls up to damp-proof course (DPC) level.

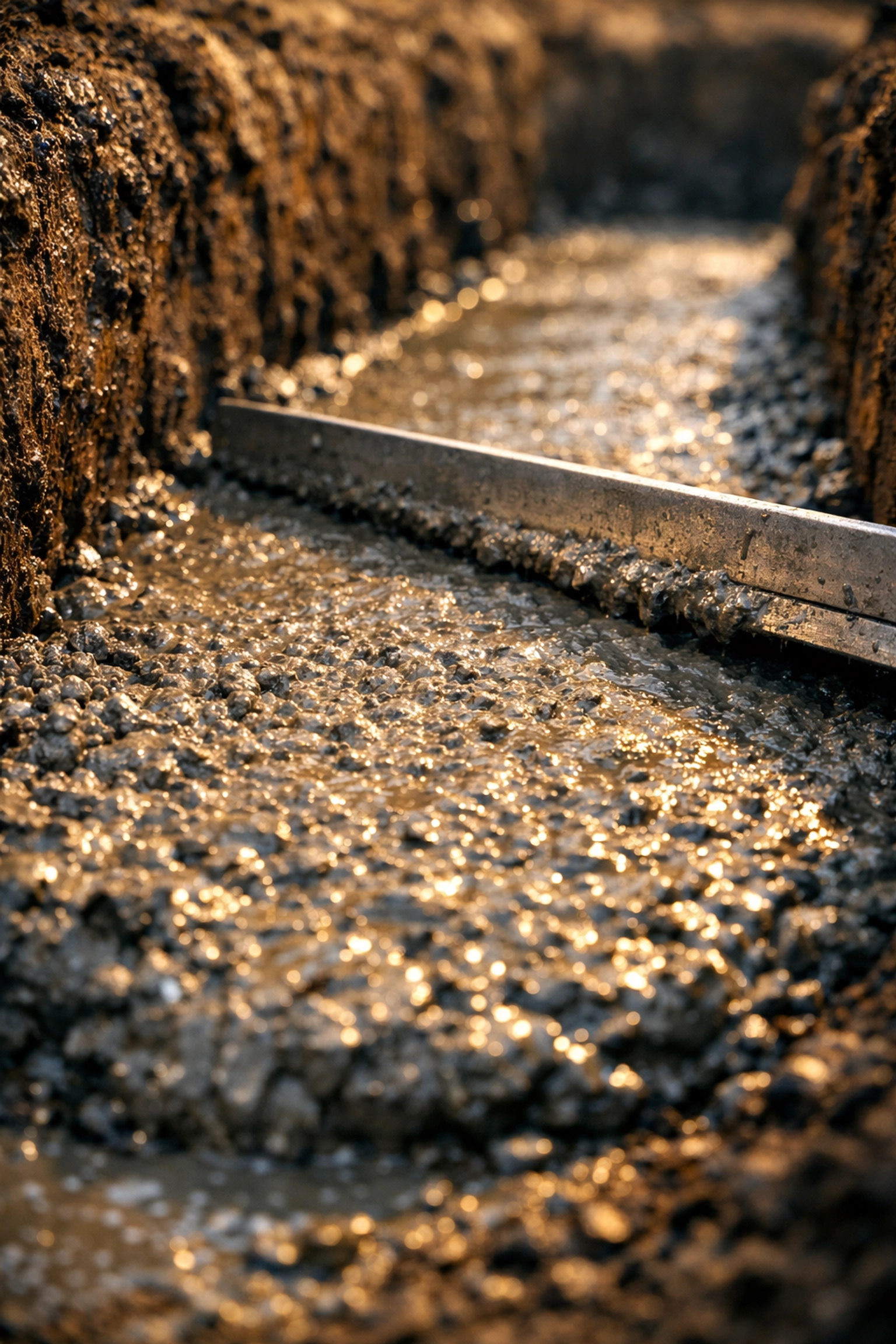

2. Trench Fill Foundations: The Modern Standard
If you walk past a construction site in West Sussex today, you are most likely to see trench fill foundations. This is a variation of the strip foundation but involves filling the majority of the excavated trench with concrete.
- How they work: Instead of a thin strip of concrete followed by layers of bricks, the entire trench is filled with concrete to within about 150mm of the ground surface.
- Best for: Most standard home extensions where the soil is stable. It is particularly useful in clay-heavy areas because the mass of concrete helps resist soil movement.
- The Benefit: Speed. Because the concrete comes right up to the surface, there is no need for bricklayers to spend days working in a deep, narrow trench. It’s safer, faster, and often more precise. While the concrete material cost is higher, the saving in labour time often makes this the preferred choice for homeowners looking to keep their project on schedule.
3. Raft Foundations: "Floating" on the Soil
What happens if the ground is too soft or unstable to support a narrow strip of concrete? This is where raft foundations (also known as mat foundations) come into play.
- How they work: Rather than digging deep trenches for individual walls, a raft foundation consists of a large, reinforced concrete slab that covers the entire footprint of the extension. It "floats" on the ground, distributing the weight of the entire building across the whole surface area.
- Best for: Poor soil conditions, areas with a history of mining, or where the ground is prone to slight movement. It’s also a common choice if the extension is relatively small and the ground is uniform.
- The Benefit: It combines the foundation and the floor slab into one process, which can be highly efficient on specific sites. It’s a clever engineering solution that prevents the extension from settling unevenly.

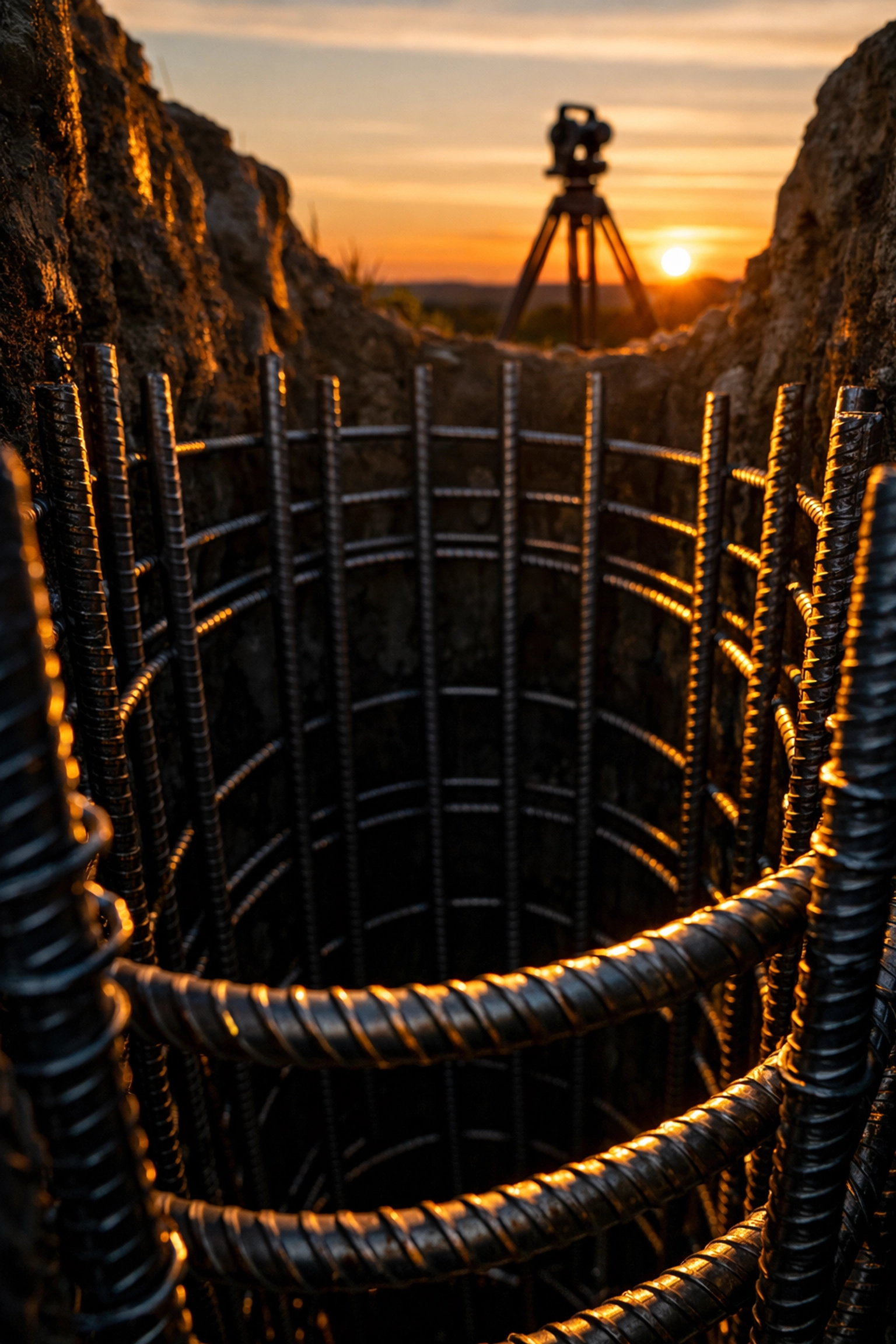

4. Piled Foundations: Reaching for Stability
Sometimes, the stable ground we need isn't two metres down: it might be five, ten, or even fifteen metres deep. This is common in coastal areas or sites with many large, thirsty trees (like Oaks or Willows) that have sucked the moisture out of the clay, causing it to shrink.
- How they work: Long columns (piles) of steel or concrete are driven or bored deep into the earth until they hit a stable layer of rock or hard soil. A concrete "ground beam" is then cast across the tops of these piles to support the extension walls.
- Best for: Sites with very deep clay, peat, or where a traditional trench would have to be dangerously deep to reach a solid base.
- The Benefit: While more expensive upfront due to the specialist machinery required, piling is often the only way to ensure an extension stays level on challenging ground. It’s about peace of mind and long-term structural security.
The "Sussex Factor": Soil and Trees
In Bognor Regis and surrounding areas, we deal with a lot of clay. Clay is "active" soil; it expands when wet and shrinks when dry. If you have large trees near your proposed extension, their roots can exacerbate this by drawing water out of the soil during the summer.
This is why a Structural Engineer is so important. They will often request a "trial hole" to see what the soil is doing. At Swanbourne Construction Ltd, we work closely with engineers and local building control officers to ensure that the foundation depth we propose is exactly what the site requires.
Are you worried about the trees in your garden affecting your build? Don't be. Modern engineering solutions like "claymaster" (a compressible material placed against the concrete) allow us to build safely even in high-shrinkage clay zones.

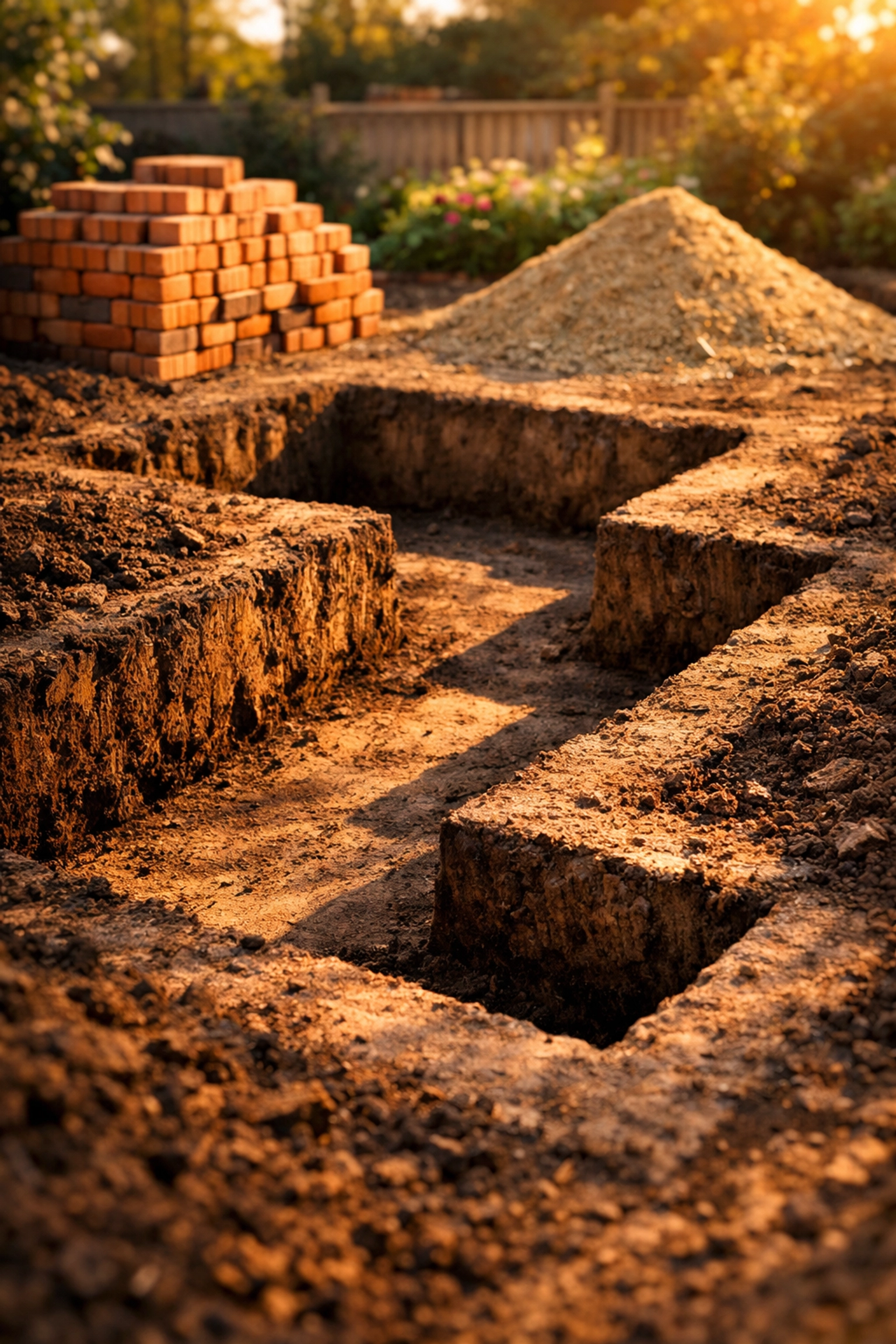

Building Control and Inspections
You cannot simply pour concrete and hope for the best. Building Control must inspect the excavated trenches before any concrete is poured. They check for:
- Correct depth: To ensure you've reached "load-bearing" ground.
- Width: To ensure the walls will be centrally supported.
- Cleanliness: No loose soil or water in the bottom of the trench.
We handle these inspections as part of our project management. We know the local inspectors in West Sussex well, and we ensure everything is signed off correctly so that you receive your final completion certificate without any hiccups. You can read more about these processes in our FAQ section.
How Foundation Choice Affects Your Budget
It is important to be realistic: foundations are where the most "unknowns" live. Until we dig, we don't know exactly what we will find. However, a professional quote should always account for the most likely scenario based on local knowledge.
- Standard Trench Fill: Usually the baseline for most quotes.
- Deepening Trenches: If the inspector requires us to go deeper than 1.5m due to tree roots, costs will increase due to extra muck-away (soil removal) and extra concrete.
- Piling: This is a significant jump in cost (often £5k-£10k+ depending on the size), but it is a necessary investment if the ground requires it.
We always recommend having a small contingency fund (usually 10%) specifically for "groundworks" just in case the earth throws us a curveball. It’s better to be prepared than surprised.
Choosing a Partner for Your Journey
Building an extension is a transformative experience. It’s not just about adding square footage; it’s about improving your quality of life and adding significant value to your property. But you want to know that the team you’ve hired isn't just focused on the pretty finishes, but also on the structural integrity that will keep your home safe for decades to come.
At Swanbourne Construction Ltd, we bring professional expertise and a consultative approach to every project. We don't just dig holes; we build foundations for your future. Whether you are in the early stages of planning or you have your drawings ready to go, we are here to guide you through the process.
